Mechanical Paver with Hydrostatic Screed

Coninfra Machinery manufactures advanced CMPL WP450 HES & CMPL AP450 HES. The two varieties of mechanical paver with hydrostatic screed are designed to enhance performance at a low maintenance cost. The machines are easy to operate and do not bother with high maintenance.

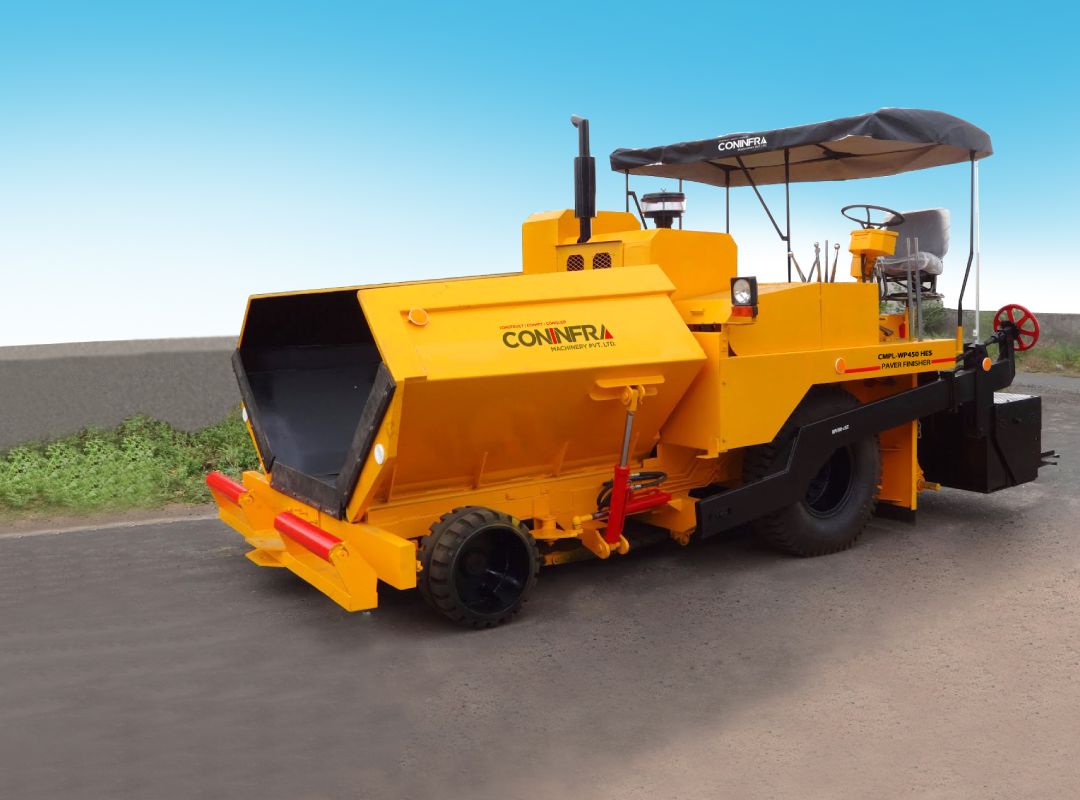

Mechanical Paver with Hydrostatic Screed Slider 01

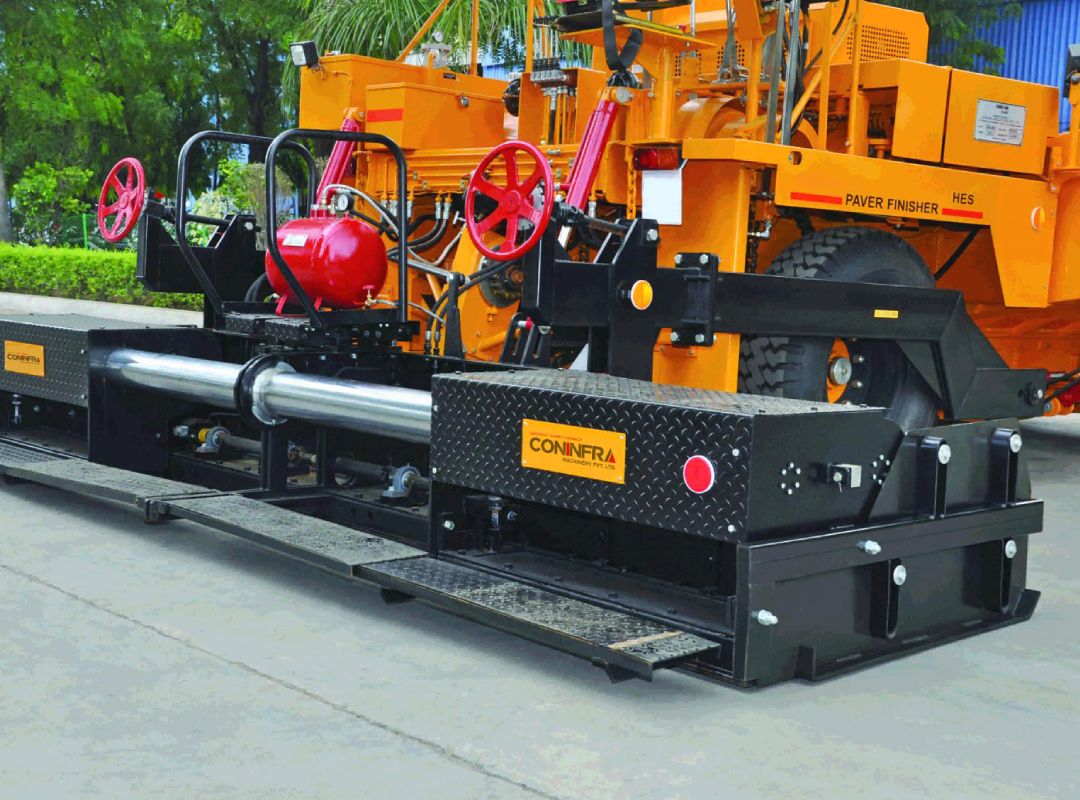

Mechanical Paver with Hydrostatic Screed slider 02

Mechanical paver finisher models CMPL WP450 HES & CMPL AP450 HES feature mechanical transmission, mechanical drive for conveyor, dual operator seats, two rear wheels, sliding-type control panel, and hydraulically flexible screed with vibration and heating facility.

HAP-045 possesses a basic screed that is 2.5 meters wide. It is hydraulically extendable up to 4.5 meters.

The mechanical paver with hydrostatic screed consists of :

  • Material Suitability
    • Bituminous Material – CMPL AP450 HES
    • Bituminous, Wet Mix, GSB, DLC & DBM Material – CMPL WP450 HES
  • Hydraulic Drive for Conveyor

Installations around the world

MECHANICAL PAVER WITH HYDROSTATIC SCREED gallery 06
MECHANICAL PAVER WITH HYDROSTATIC SCREED gallery 03

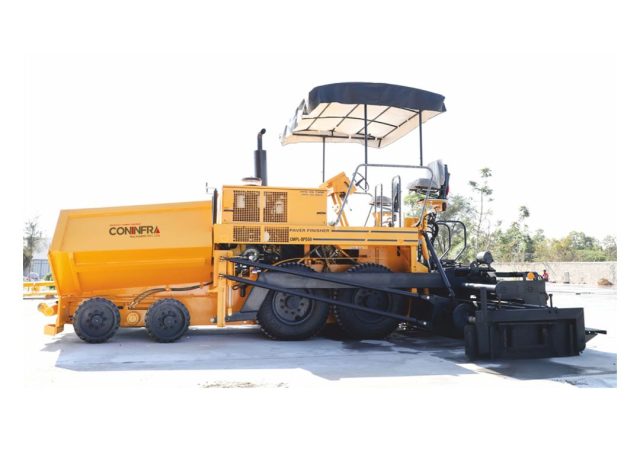

MECHANICAL PAVER WITH HYDROSTATIC SCREED gallery 02

Technical Information

Model CMPL-AP450 HES (HOT MIX) CMPL-WP450 HES (DUAL APPLICABLE)
Operating Height 3.05 m 3.05 m
Shipping Height 2.43 m 2.43 m
Length 5.8 m 5.8 m
Operating Width 3.12 m 3.12 m
Shipping Width 2.7 m 2.7 m
Wheel Base 2.5 m 2.5 m
Engine Make Kirloskar Kirloskar Ashok Layland
Engine Model No. 4R 1040 4R 1040T ALU 6.65
Engine Power 76 HP @ 2200 rpm 105 HP @ 2200 rpm 105 HP @ 2200 rpm
Electrical System 12 VDC 12 VDC
Weight (Approx.) 9.5 t 10 t
Hopper Capacity (Approx.) 4 Cubic Meter 4 Cubic Meter
Steering Power Steering Power Steering
Travel Speed 0 – 16km/hr 0 – 16km/hr
Paving Thickness 10-200 mm 10-200 mm
Paving Speed 1.25-23mm 1.25-23mm
Paving Width 2.5-4.5 m 2.5-4.5 m
Tyre Front Solid 2 nos/22 ✕ 16 ✕ 12 2 nos/22 ✕ 16 ✕ 12
Tyre Rear Pneumatic 2 nos/11 ✕ 20 ✕ 18 PLY 2 nos/11 ✕ 20 ✕ 18 PLY
Fuel Tank Capacity 120 Ltr. 120 Ltr.
Hydaulic Tank Capacity 80 Ltr. 80 Ltr.
Auger Diameter 300 mm 300 mm
Screed Type Hydraulically Extendable Hydraulically Extendable
Screed Vibration 0 to 2000 per Minute Hydraulically Extendable
Crown -1 to +3% -1 to +3%

Frequently Asked Questions About Our Mechanical Paver With Hydrostatic Screed

What are the Coninfra Machinery Pvt Ltd mechanical paver with hydrostatic screed features?

The Coninfra Machinery Pvt Ltd Paver with Hydrostatic Screed is a robust machine for asphalt paving and flat works projects. Equipped with a hydrostatic drive system, it effortlessly traverses expansive surfaces with seamless speed. Including adjustable fan-style screeds empowers operators to attain precise grade accuracy for successful paving endeavors. The Paver with Hydrostatic Screed is a versatile solution for paving requirements showcasing Coninfra’s dedication to engineering excellence.

What is the maximum paving width of the Coninfra Machinery Pvt Ltd mechanical paver with hydrostatic screed?

The Coninfra Machinery Pvt Ltd mechanical paver with hydrostatic screed has an adjustable paving width of up to 4.5 meters. This makes it suitable for large-scale projects such as highways and airport runways. Its powerful engine and adjustable fan-style screeds make it capable of handling heavy loads quickly and efficiently, even in rugged terrain.

How can I purchase a Coninfra Machinery Pvt Ltd mechanical paver with a hydrostatic screed?

Coninfra Machinery Pvt Ltd mechanical pavers with hydrostatic screeds are available from various online and offline retailers. Customers can contact the Coninfra team directly to inquire about purchasing a machine and receive technical support and advice on maintaining and operating the equipment. The company also offers training courses for operators to ensure they are knowledgeable about the device and their machinery’s safe and efficient operation. Additionally, Coninfra offers an extended warranty on all its products to provide customers with added peace of mind.

How does the Coninfra Machinery Pvt Ltd mechanical paver with hydrostatic screed improve paving efficiency?

The Coninfra Machinery Pvt Ltd mechanical paver with hydrostatic screed offers several design features that make it ideal for high-speed paving jobs. Its powerful engine and adjustable fan-style screeds improve efficiency by providing consistent grade accuracy, even in uneven terrain. The machine also has an automatic leveling system that allows operators to adjust without stopping and recalibrating the equipment quickly.

What safety features are included on the Coninfra Machinery Pvt Ltd mechanical paver with hydrostatic screed?

The Coninfra Machinery Pvt Ltd Mechanical Paver Finisher with Hydrostatic Screed boasts an array of safety elements. These encompass an emergency stop button and a low-pressure warning system, ensuring operational security. Furthermore, the reverse drive feature adds an extra layer of safety by enabling operators to retreat from the area when required. Accompanied by adjustable fan-style screeds, this solution guarantees uniform grade accuracy, curbing the possibility of uneven surfaces and costly setbacks. Coninfra’s commitment to safety and precision shines through in the Mechanical Paver Finisher with Hydrostatic Screed.

Download A Complete Catalog Mechanical Paver With Hydrostatic Screed
