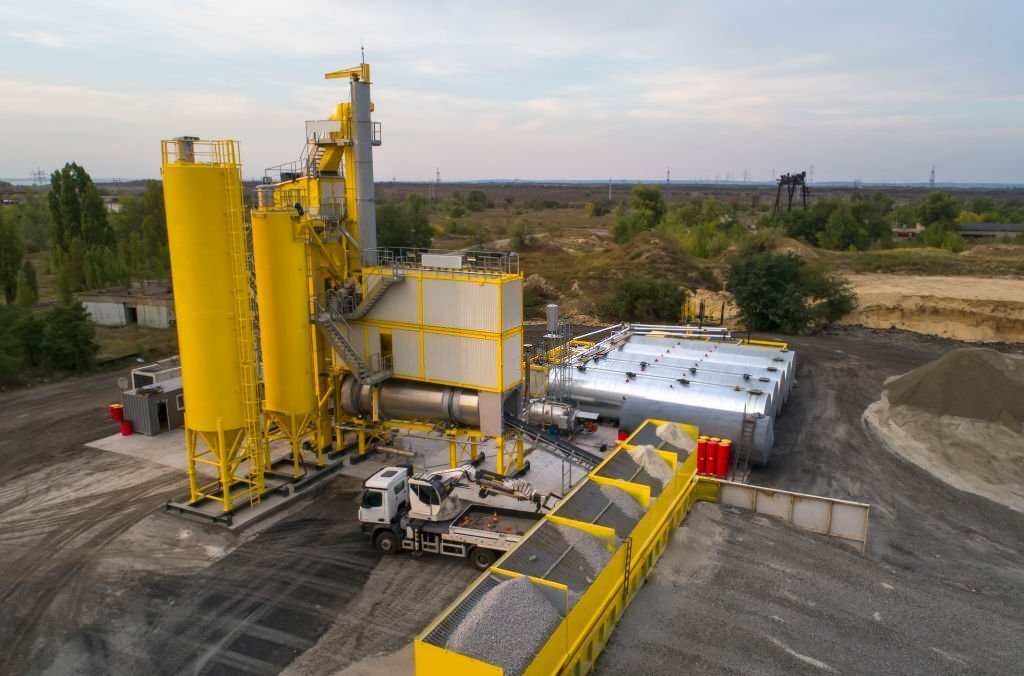

If you’ve ever watched a highway crew laying fresh asphalt, the mix underfoot went through a machine that most people never think about: the asphalt drum mix plant. It’s the workhorse behind most modern road paving jobs, and understanding how it operates helps contractors, site engineers, and equipment buyers make better decisions about which plant fits their project.
This guide walks through how a drum mix plant actually works, the parts inside the drum that do the real work, how it differs from a batch mix plant, and what tends to go wrong when the drum isn’t set up or maintained correctly.
What Is an Asphalt Drum Mix Plant?
An asphalt drum mix plant is a continuous-production plant that dries, heats, and coats aggregate with bitumen inside a single rotating drum. Unlike a batch plant, which processes material in separate weighed batches, a drum mix plant runs aggregate and bitumen through the drum in one continuous stream, drying and mixing them together as they move.
This continuous design is why drum mix plants are the common choice for large road projects — highways, rural roads, and any job where a steady, high-volume output matters more than fine-grained control over individual batch recipes.
How the Drum Mix Process Works, Step by Step
1. Cold aggregate feeding: Aggregate (stone, sand, and gravel in different sizes) is loaded into cold feed bins. Each bin feeds a conveyor at a set rate, and the proportions from each bin determine the final gradation of the mix. Getting this feed rate right is the first place quality is either won or lost — uneven feeding shows up later as an inconsistent mix.
2. Entering the drum: The blended aggregate moves onto a conveyor and drops into the elevated end of the rotating drum. The drum itself sits at a slight incline, so gravity helps push material through it as it turns.
3. Drying and heating: A burner sits at the lower end of the drum, firing a flame down the length of it. As the drum rotates, the aggregate tumbles through the hot air and flame, driving off moisture and bringing the material up to mixing temperature — typically somewhere in the 150–160°C range, though this varies by mix design and binder type.
4. The role of the mixing arm and flights: Inside the drum, a series of blades, flights, and what’s often called the mixing arm are welded or bolted along the interior wall. As the drum spins, these lift the aggregate up and let it cascade back down through the flame and hot gas stream. This is what actually dries the material evenly instead of just heating the outer layer of a static pile. The shape, spacing, and angle of these blades directly affects how well the aggregate is exposed to heat, which is why drum design isn’t something manufacturers treat as an afterthought.
5. Bitumen injection: Further down the drum, past the direct flame zone, hot bitumen is injected and sprayed onto the tumbling aggregate. The same lifting and folding action of the blades coats each particle in binder. This zone is kept separate from the burner flame to avoid scorching the bitumen.
6. Discharge and storage: The finished hot mix asphalt exits the drum onto a slat conveyor, which carries it up into a storage silo or directly into waiting trucks, depending on the plant layout.
What’s Inside the Drum: Key Components
A few parts inside and around the drum do most of the work, and they’re also the parts that wear out and need attention:
- Mixing arm / blades / flights — lift and fold the aggregate through the heat and bitumen spray. Worn or bent blades lead to uneven drying and patchy coating.
- Lining plate (liner) — the wear-resistant plate bolted to the inside of the drum shell, protecting the steel from constant abrasion by hot aggregate. Liners are replaceable and are usually the first thing to check when mix quality drops.
- Scraper — clears built-up material from the drum interior so it doesn’t cake onto the shell and reduce heat transfer.
- Drive system — the motor, gearbox, girth gear, and support rollers that rotate the drum at a controlled speed. Drive system problems usually show up as inconsistent retention time, which then shows up as inconsistent mix temperature.
Asphalt Drum Mix Plant vs Batch Mix Plant
The two most common questions people have when comparing plants:
- Production style: Drum plants run continuously; batch plants produce fixed-size batches one at a time.
- Output volume: Drum plants generally produce higher tonnage per hour, which is why they’re favored for highway and large infrastructure work.
- Mix flexibility: Batch plants allow tighter control when a project needs frequent changes to mix design, since each batch is weighed and mixed separately. Drum plants are harder to switch quickly between different mix formulas mid-run.
- Footprint and setup: Drum plants tend to have a simpler layout with fewer separate components (no hot bins, no separate pugmill), which can mean a smaller footprint and quicker setup on site.
Neither is universally “better” — the right choice depends on project size, how often the mix design changes, and site constraints.
Keeping the Drum Aligned and Running Efficiently
A few practical issues come up often with drum mix plants, and they’re worth knowing before they become production problems:
- Drum alignment: If the drum isn’t level or the support rollers wear unevenly, the drum can start to walk out of alignment. This puts uneven stress on the drive system and can cause the shell to wear faster on one side.
- Blade and liner wear: Constant contact with hot, abrasive aggregate wears down blades and liners over time. Regular inspection catches this before it affects mix consistency.
- Burner tuning: A poorly tuned burner either wastes fuel or doesn’t fully dry the aggregate, both of which affect the final mix quality and cost per ton.
- Drive system checks: Gearbox oil levels, girth gear wear, and roller alignment are routine maintenance items that keep the drum turning at a consistent, controlled speed — which is what keeps retention time (and therefore mix quality) consistent batch after batch, or in this case, ton after ton.
Getting these right isn’t a one-time setup task. It’s ongoing maintenance, and plants that get regular inspection tend to run longer between major repairs.
Where Drum Mix Plants Are Used
Drum mix plants are the standard choice for:
- Highway and expressway construction
- Rural and state road projects
- Large paving contracts where output volume matters
- Any job where the mix design stays fairly consistent across the project
For smaller jobs, municipal work with frequent mix changes, or projects needing tighter batch-to-batch control, a batch mix plant is often the better fit.
A Few Common Questions
1. How does an asphalt plant work overall, beyond just the drum?
The drum is the core of the plant, but a full plant also includes the cold feed system, the burner and fuel supply, dust collection (baghouse), the bitumen storage and pumping system, and the finished product silo. All of these work together, with the drum handling the drying and mixing step.
2. What’s the difference between a drum mix plant and a bitumen mixing plant?
“Bitumen mixing plant” and “asphalt mixing plant” are generally used to describe the same type of equipment — bitumen is the binder used in asphalt, so the terms overlap depending on regional usage.
If you’re evaluating drum mix plants for a project, the details above — drum design, blade configuration, liner material, and drive system quality — are the areas worth asking a manufacturer about directly, since they affect both output quality and how much maintenance the plant needs over its working life.
